The Gan Shield Intelligent Electric Dense Frame relies on the intelligent control system of the Internet of Things and big data, combined with traditional dense frame technology, artificial intelligence technology, network technology, video acquisition technology, biometric technology and other technical means to achieve intelligent and human-machine interaction of dense frames. It can help users solve various problems such as file retrieval, security, and preservation, and is equipped with various personnel safety protection functions, so as to integrate archive personnel and archive management process, creating a new intelligent dense frame for archives.

Major function

Comprehensive operation function

The intelligent electric dense rack is an intelligent network dense rack that integrates manual, electric, and computer control. It can achieve long-distance operation, and various control methods of the rack are independent of each other and do not affect each other.

Flexible curve operation function driven by low-voltage brushless DC motor

Using a low-voltage brushless DC motor with a power output of ≤ 150W, the driver and frame controller need to use an embedded integrated circuit board to maximize electromagnetic compatibility and reliable stability. Adopting a flexible curve operation mode of fast start, high-speed operation, and gentle closing. Compact structure, low noise, maintenance free, long-lasting, durable, and completely collision free operation

Full process voice tracking prompt

Equipped with high-quality voice broadcasting and control functions, users can directly control the left and right movement, closing, ventilation, stopping, and other operations of any rack in the warehouse using a simple combination of voice command words and column numbers. After the management personnel enter the rack, they will automatically provide the file storage location broadcast function, which also has voice notification and message function

Personnel protection function

The anti pinch design using artificial intelligence technology can automatically adapt to various load situations, which is an essential safety guarantee technology. Equipped with multiple safety protection functions such as infrared human body sensing protection device and anti tipping protection device to ensure the safe operation of the dense rack

Intelligent automatic ventilation function

Users can independently set ventilation conditions, with even distance during ventilation, allowing dense racks to open naturally for even ventilation, which is the most economical measure for preventing mold in archives

Graphical display function for rack operation and archive status

The LCD screen of the dense shelf panel can display the operating status of the dense shelf and the storage status of the column of files, including the running time, temperature and humidity, the inventory of files, and the status of outbound. Convenient for users to verify the storage status and warehouse environment of archives, greatly improving the informatization level of archive management

Intelligent archive management software and interface

By utilizing the powerful management functions of computers, combined with statistical data classification and borrowing logs, it is possible to achieve scientific management of archival materials. It can automatically classify and place items, as well as achieve disorderly placement, orderly management, or batch shelving; According to the different types of archives, different managers can choose different regions as management areas and different types of archives as management types. Simultaneously equipped with multiple database interface functions, supporting wireless data collection and control functions for PDA (or barcode scanner) and smartphone terminals; Support remote monitoring and multiple monitoring center functions; Support smoke alarm, fire linkage SMS alarm function, etc

The dense frame is a frame structure: composed of chassis, double columns, pallets and top plates, protective plates, storefronts, transmission mechanisms, tracks, shock-absorbing devices, as well as dust and rodent prevention devices, etc. The section type, frame height, frame width, number of floors and columns can be selected according to user needs

The track is made of 20x20 square steel, available in galvanized, chrome plated, and stainless steel, and can be selected according to user needs

The chassis is generally segmented and combined, with high machining accuracy and interchangeability, making it easy for safe transportation and installation

The transmission mechanism adopts motorcycle chains and precision flat bearings, making the transmission flexible and stable

The support plate of the shelf and hook is stable and firm after combination, and the spacing between layers can be freely adjusted as needed. Each shelf is uniformly weighted, with 50kg on one side and 100kg on both sides. If the load needs to be increased, it can be specially designed

Each column is equipped with a handbrake braking device

Each contact surface of the column is equipped with buffering and sealing devices, with a dust-proof plate at the top and a rodent proof device at the bottom, which has good dust-proof, rodent proof, moisture-proof, fireproof, and shockproof functions

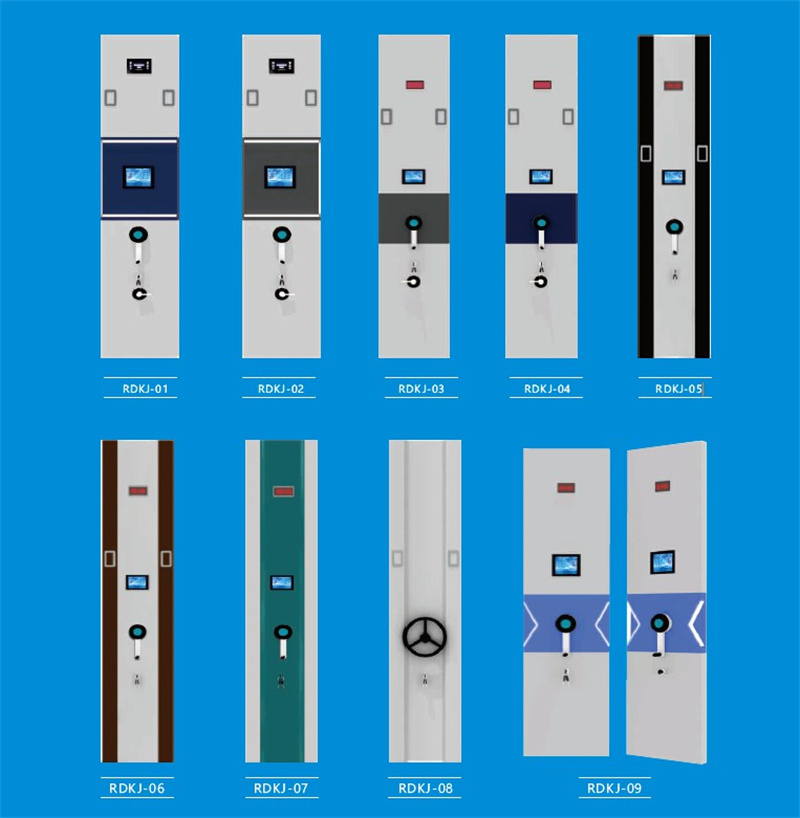

Intensive frame side plate series
